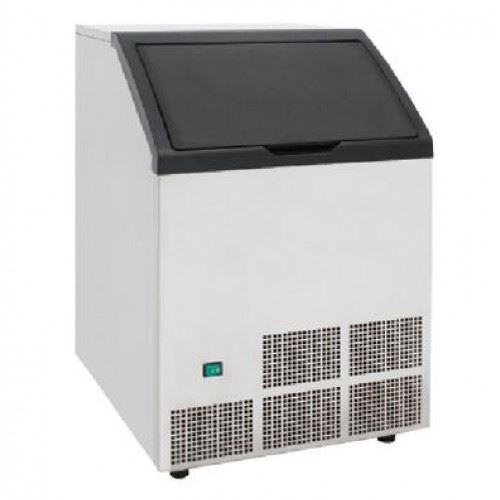

Water Flowing Ice Maker, square/cube ice make machine

Model: ZBL Series

Feature:
*The plastic ice spoon and stainless steel ice spoon is optional
*Makes ice in approx. 20 Minutes
*Makes up to 460KG of Ice/day
*Ice is crystal and hard to melt
*The inner liner material conforms to LFGB/NSF
* Inner filter to avoid the oil and smoke in the kitchen
* Special ice storage to avoid the ice cute melt
*Strong cooling system to improve the 5% of making ice efficiency

Specifications:

Model		ZBL40	ZBL60	ZBL90
Exterior		stainless steel	stainless steel	stainless steel
Ice Capacity (Kg/24h)		40	60	90
Ice Storage (kg)		23	39.5	48
Voltage		110V/50Hz 220V/50Hz	110V/50Hz 220V/50Hz	110V/50Hz 220V/50Hz
Refrigerant		R134a	R134a	R134a
Water Supply		Automatic	Automatic	Automatic
Net Weight		42	51	64
Gross Weight		47	57	79
Exterior Dimension		505556803	605665845	7006121065
Packing Dimension		555610855	655715895	7806801130
Stuffing Qty	20GP	76	54	48
	40GP	160	108	102
	40HQ	240	108	102


Model		ZBL150	ZBL250	ZBL460
Exterior		stainless steel	stainless steel	stainless steel
Ice Maker Capacity: Kg/24h		150	250	460
Buffer Storage (kg)		95	160	160
Voltage		110V/60Hz 220V/50Hz	110V/60Hz 220V/50Hz	110V/60Hz 220V/50Hz
Refrigerant		R404a /R134a	R404a /R134a	R404a /R134a
Water Supply		Automatic	Automatic	Automatic
Ice cube dimension (mm)		222222	22222	222222
Net Weight (kg/pound)		76 / 167	120 / 26	200 / 441
Gross Weight (kg/pound)		105 / 231	156 / 347	162 / 357
External Dimension	ice making room	566573478	754590575	754590575
External Dimension	ice storage room	655705590	770880912	777880912
Packing Dimension	ice making room	655705590	777880790	777880790
Packing Dimension	ice storage room	665865900	835930935	835930935
Stuffing Qty	20GP	32	25	22
	40GP	68	50	44
	40HQ	68	56	48
