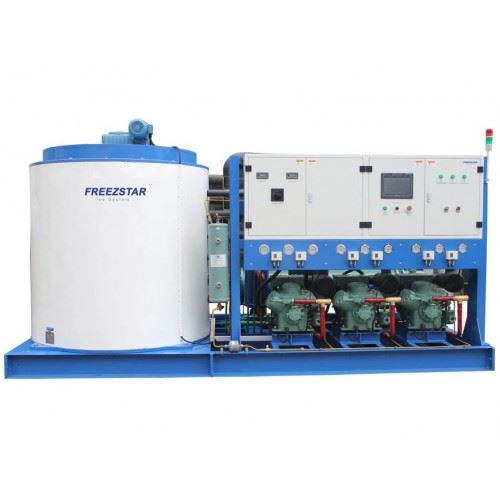

Industry Flake Ice Maker

Model: IFC Series

Safety & Convenience

The humanistic designed as well as your home air-conditioning. Feel free to set the start & stop time of the machine as you need, which will reduce your human & energy cost by avoiding the machine continue running & making ice although the ice is enough for use.
Perfect failure searching system. The red warning signal flicker if any failure accrued, and the relevant resolvant can be queried instantly.
Running state played alive in the touch-screen. All the state such as water flowing, ice dropping etc. is clear at a glance, warning signal occurred in the exact position once machine in abnormal.
Completely safety unit. Automatic-safety unit running to perfect the machine any time as soon as the power cut off, water lack, ice full, voltage over high or low as well as compressor overshot etc. Which gives the machine sufficient safety & stabilization and longer life.
The Europe CE standard designing. Both the electric circuit and component selection as well as trip switch (The machine stop once the electric box door open) strictly follow the CE request, and then all the electrical danger eliminated.
It hold both smart exterior and inner. The exterior design and material match the machine makes one integrated mass in good view.


Obdurability & Stability

One-time forming ice skates. Weldless formed ice scraper. The stainless steel ice scraper formed without weld. Even by long-time scraping, the scrapper keep still obdurability, and the ice dropped is sizable with nearly no powder.
High thermal conductivity evaporator. Evaporator with high heat conduction coefficient. The ice flake evaporator processed from special alloy with lightness and high heat conduction foefficient approximating that of Aluminum, which achieve the best intension, rigidity and refrigeration efficiency of the evaporator, and finally gives the ice making system’s stability & high-efficiency.


Low consumption & High precision

Components of choiceness. All the accessories via time after time selecting is compatible to match the machine. Then it create maximum value for you by the best performance as ell as the lowest cost.
Minute refrigeration pipe. By strictly control the production details, LABFREEZ ice machine performed in maximal efficiency with the special welding & designing.

Applications
More and more cooling or temperature reduction industry used ice machines to meets higher technical request due to their deeper knowledge about the equipment.

Supermarket
Meat processing
Aquatic food processing
Fowl slaughtering
Leather industry
Dye chemical industry
Temp. reduction of mine
Bio-pharmacy
Laboratory
Medical facility
Ocean-going fishing
Concrete construction project

Specifications

No. Specifications IFC-05T IFC-1T IFC-1.2T IFC-1.5T
01 Ice production capacity 1t/24h 1t/24h 1t/24h 1t/24h
02 Cooling power 5.6kw 5.6kw 5.6kw 5.6kw
03 Evaporation temperature -20°C -20°C -20°C -20°C
04 Condensing temperature 40°C 40°C 40°C 40°C
05 Ambient temperature 25°C 25°C 25°C 25°C
06 Water temperature 20°C 20°C 20°C 20°C
07 Total installed power 4.57KW 4.57KW 4.57KW 4.57KW
08 Compressor input power 3.8KW 3.8KW 3.8KW 3.8KW
09 Reducer Power 0.18 KW 0.18 KW 0.18 KW 0.18 KW
10 Cooling type Air cooled Air cooled Air cooled Air cooled
11 Power supply 3P/380V/50Hz 3P/380V/50Hz 3P/380V/50Hz 3P/380V/50Hz
12 Refrigerant R404a R404a R404a R404a
13 Flake ice thickness 1.6mm-2.3mm 1.6mm-2.3mm 1.6mm-2.3mm 1.6mm-2.3mm
14 Net weight 450kg 450kg 450kg 450kg
15 Pipe over size 1/2’’ 1/2’’ 1/2’’ 1/2’’
16 Dimensions(L*W*H)mm 1320*900*900 1320*900*900 1320*900*900 1320*900*900

Note: Water-cooled, refrigerant is optional

No. Specifications IFC-2T IFC-3T IFC-4T IFC-5T
01 Ice production capacity 2t/24h 3t/24h 4t/24h 5t/24h
02 Cooling power 11.6kw 17.2kw 27kw 35kw
03 Evaporation temperature -20°C -20°C -20°C -20°C
04 Condensing temperature 40°C 40°C 40°C 40°C
05 Ambient temperature 25°C 25°C 25°C 25°C
06 Water temperature 20°C 20°C 20°C 20°C
07 Total installed power 8.34 KW 11.11 KW 17.77 KW 22.55 KW
08 Compressor input power 7.2 KW 9.97 KW 15.92 KW 20.7 KW
09 Reducer Power 0.37 KW 0.37 KW 0.37 KW 0.37 KW
10 Cooling type Air cooled Air cooled Air cooled Air cooled
11 Power supply 3P/380V/50Hz 3P/380V/50Hz 3P/380V/50Hz 3P/380V/50Hz
12 Refrigerant R404a R404a R404a R404a
13 Flake ice thickness 1.6mm-2.3mm 1.6mm-2.3mm 1.6mm-2.3mm 1.6mm-2.3mm
14 Net weight 500kg 600kg 790kg 960kg
15 Pipe over size 1/2’’ 1/2’’ 3/4’’ 3/4’’
16 Dimensions(L*W*H)mm 1500*1100*1045 1640*1200*1250 2000*1600*1280 2000*1650*1360

Specifications

No. Specifications IFC-8T IFC-10T IFC-12T IFC-15T
01 Ice production capacity 8t/24h 10t/24h 12t/24h 15t/24h
02 Cooling power 50.7kw 75.3 KW 85.2KW 85.2kw
03 Evaporation temperature -20°C -20°C -20°C -20°C
04 Condensing temperature 40°C 40°C 40°C 40°C
05 Ambient temperature 25°C 25°C 25°C 25°C
06 Water temperature 20°C 20°C 20°C 20°C
07 Total installed power 33 KW 45.52 KW 53.5KW 54.5 KW
08 Compressor input power 27.1 KW 40.7 KW 45.9 KW 45.9 KW
09 Reducer Power 0.55 KW 0.55 KW 0.55 KW 0.75 KW
10 Cooling type Water cooled Water cooled Water cooled Water cooled
11 Power supply 3P/380V/50Hz 3P/380V/50Hz 3P/380V/50Hz 3P/380V/50Hz
12 Refrigerant R404a R404a R404a R404a
13 Flake ice thickness 1.6mm-2.3mm 1.6mm-2.3mm 1.6mm-2.3mm 1.6mm-2.3mm
14 Net weight 1670 kg 2020 kg 2260 kg 3820kg
15 Water inlet/drain pipe 3/4’’, 1/2’’ 3/4’’, 1/2’’ 3/4’’, 1/2’’ 3/4’’ * 2 , 1/2’’
16 Dimensions(L*W*H)mm 2300*2000*1750 2900*1850*1850 2300*2000*2000 3500*2200*2140
No. Specifications IFC-20T IFC-25T IFC-30T
01 Ice production capacity 20t/24h 25t/24h 30t/24h
02 Cooling power 127.5 KW 152.2 KW 202.1 KW
03 Evaporation temperature -20°C -20°C -20°C
04 Condensing temperature 40°C 40°C 40°C
05 Ambient temperature 25°C 25°C 25°C
06 Water temperature 20°C 20°C 20°C
07 Total installed power 77 KW 91.5 KW 108.4 KW
08 Compressor input power 45.9 KW 68.9 KW 97.9 KW
09 Reducer Power 0.75 KW 0.75 KW 0.75 KW
10 Cooling type Water cooled Water cooled Water cooled
11 Power supply 3P/380V/50Hz 3P/380V/50Hz 3P/380V/50Hz
12 Refrigerant R404a R404a R404a
13 Flake ice thickness 1.6mm-2.3mm 1.6mm-2.3mm 1.6mm-2.3mm
14 Net weight 4410 kg 4960 kg 5380 kg
15 Water inlet/drain pipe 3/4’’ * 2 , 1/2’’ 3/4’’ * 2 , 1/2’’ 3/4’’ * 2 , 3/4’’
16 Dimensions(L*W*H)mm 4100*2100*2300 4100*2100*2600 3500*2200*2650
