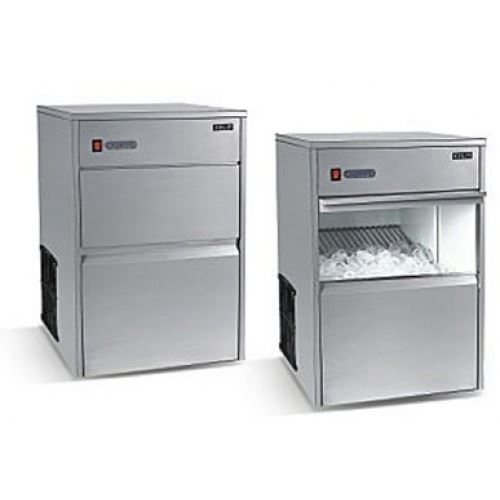

IM series Automatic Granular Ice Maker (transparent bullet ice)

Model: CIM Series

Features:

– Compact design, Luxurious appearance.
– Full automatic running and easy to use.
– IM-25A with front air intake and exhaust in back, others with air intake and exhaust in cabinet side.
– A power-overloading protecting device, water shortage auto-detecting system and ice storage full control device.
– High efficiency CFC free compressor, economical and low energy consumption.

Technical Parameters:

Model	IM-25	IM-50	IM-80	IM-100	IM-120
Capacity(kg)/24h	25	50	80	100	120
Ice storage(kg)	6	13	16	55	55
Size(mm)	380×543×662	398×543×682	548×611×823	680×611×1050	680×611×1050
Packing dimension(mm)	457×621×710	463×613×730	625×690×872	755×690×1100	755×690×1100
NW/GW(kg)	30/34	47/52	50/55	70/78	72/80
Input Power (W)	240	380	650	680	750
Loading quantity(20’HQ)	135	135	54
Loading quantity(40’HQ )	285	285	171
Cooled type	Air-cooled
Shell Material	Stainless steel
Refrigerant	CFC R134a
Ice Shape	bullet -shaped ice, Diameter 2.5cm, length 3.5cm
