FD-12 series Floor Type Freeze Dryer, 4kg/24 hours, 0.08~0.12m2

FD-12 series Freeze Dryer(Lyophilizer) is applicable for freeze-drying test of laboratory samples and suitable for small amount of production.

Characteristics

– Microprocessor control & LCD touch display which can display drying curve, vacuum, condenser temp., run time, ambient temperature.
– Pre-freezing function for samples.
– Large refrigerating capacity and slight noise of DANFOSS(SECOP) compressor with CFC-FREE refrigerant.
– 304 stainless steel of condenser, table-top, racks & shelves to ensure corrosion-resistant and easy to clean; shelves height adjustable.
– Transparent drying chamber is safe and easy to observe;
– Novel design, small size and easy operation;
– For water based samples, the -55°C condenser is the perfect choice with effective cost. For samples containing solvents or with low eutectic points, the -80 C dual cascade refrigeration condenser provides maximum performance (optional).
– For labs that needs quick turn-around, electric heating defrost is optional.
– Nitrogen inflation valve is available.
– It includes the following types: Normal type, Top-press type, multi-manifold T type and multi-manifold Top-press type to meet the various requirements.
– CE/ISO 9001 13485 14001 certificated.

Specifications of FD-12 Freeze Dryer

Model		FD-12-R	FD-12-MR	FD-12-TP	FD-12-MTP	FD-12-MT
Dry chamber size (D*H)		Ф260 × 430mm	Ф260 × 465mm	Ф260 × 490mm	Ф260 × 540mm	/
Total shelf area		0.12 m2	0.12 m2	0.08 m2	0.08m2	/
Shelf size (mm)		Ф200*4pcs	Ф200 * 4pcs	Ф180 * 3pcs	Ф180 * 3pcs	/
Shelf space height (mm)		70	70	70	70	/
Vials load quantity	Ф12mm	920 Pcs	920 Pcs	560 Pcs	560 Pcs	24 ports 430 × 480 mm (H*L)
	Ф16mm	480 Pcs	480 Pcs	285 Pcs	285 Pcs
	Ф22mm	260 Pcs	260 Pcs	165 Pcs	165 Pcs
Sample load capacity		1.2L	1.2L	0.8L	0.8L	/
Flask		/	8 pcs	/	8 pcs	/
Dry rack		Included	Included	Included	Included	/
Cold trap rack		Included	Included	Included	Included	Included
Condenser temp.		<-55°C (-80°C or even lower is optional)
Cold trap size		Ф215 * 140 mm (Depth * Height)
Ice remove capacity		4 Kg/24h
Cold type		Air-cooled
Defrost type		Natural (Electric is optional)
Ultimate Vacuum		<5 Pa
Vacuum pump		Included
Pump rate		2L/S
Install Power		970 W
Voltage		220v/50Hz or 110v/60Hz
Dimensions		460×556×(720+465)(mm)
Weight		120 kg	135kg	130kg	140kg	76 kg

Specifications of vacuum pump

Model		2XZ-0.5	2XZ-1	2XZ-2C		2XZ-4C	2XZ-6C		2XZ-8C	2XZ-15C
Pumping Speed: L/S		0.5	1	2		4	6		8	15
Ult. Vacuum Pa	Without gas ballast	≤6×10-2
	With gas ballast	≤6.5	≤1.33
Speed: r/min(50HZ)		1400
Power Required: Kw		0.18	0.25		0.37	0.55		0.75	1.1		1.5
Diameter of inlet port: mm		16	16		25	25		40	40		40
Temp. rise of pump oil: °C		≯40			≯45			≯45	≯65		≯70
Oil capacity: L		0.60	0.70		0.10	1.2		2.0	3.0		4.0
Overall Dimensions: mm		447 168 260	469 168 260		514 168 282	514 168 282		565 200 342	650 240 430		770 240 430
Weight: kg		16	17		20	22		40	60		75

Standard Configuration

– Stainless steel condenser with opening, stainless steel operation tops, seamless welding with round corner which is anti-corrosion and easy to clean
– Stainless steel shelf & rack, 4 or 6 pcs shelves optional, shelf removable and spacing height adjustable
– Stainless steel pre-cooling rack with metal cover
– Integrally molded glass dried barrel adopted special plastic will not break
– Used SECOP (DANFOSS) quality compressor, high performance condenser fan, LCD touch display, history data can be stored, searched and exported to computer.

Model	R	TP	MR	MTP	MT

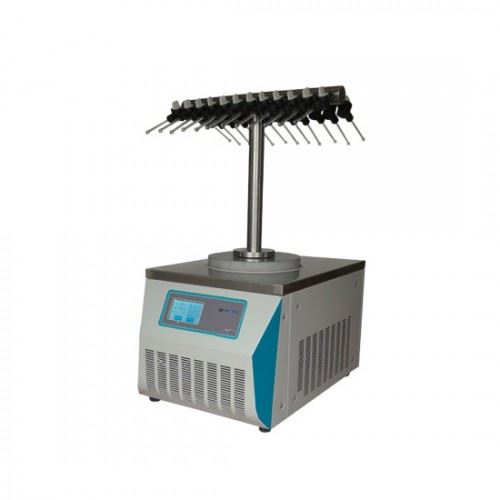

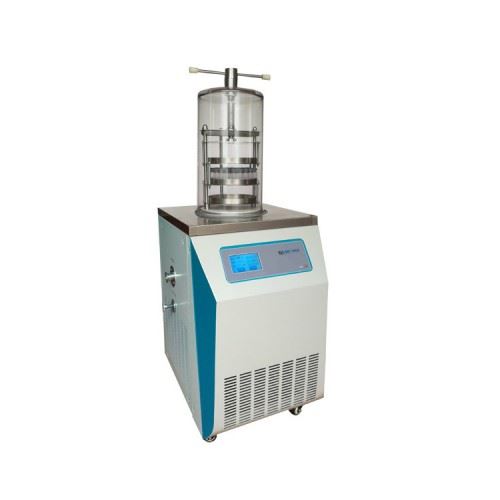

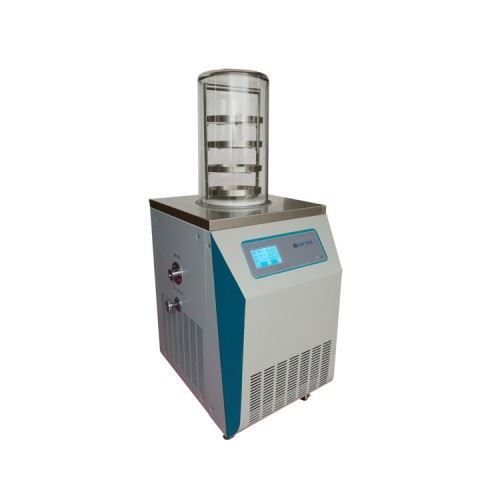

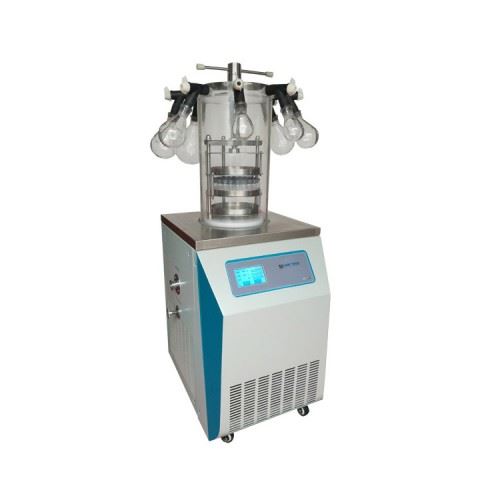

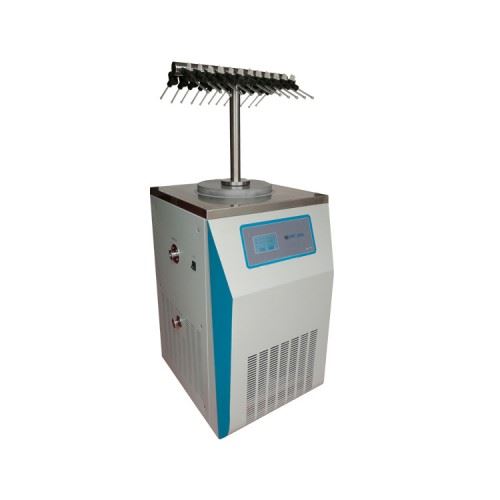

Description	Normal type	Stopper device	Stopper + flasks	Flasks system	Multi-ports manifold
Freeze Dryer	●	●	●	●	●
Glass barrel	●	●	●	●
Vacuum pump	●	●	●	●	●
Stoppering device		●		●
Manifold Ports			8 ports (28/ 32mm), each 2 in 1000ml, 500ml, 250ml, 100ml		12 or 24 ports

Optional List

Item No.	Item Name	Item No.	Item Name
FD1001	-80°C Condenser	FD1009250	250ml flask
FD1002	RS232 & Software	FD1009500	500ml flask
FD1003	Defrost device	FD10091000	1000ml flask
FD1004	Refrigerant R404a, R502, R23 and etc	FD1010	Leybold vacuum pump
FD1005	Oil mist filter	FD1011	Touch LCD display
FD1006	Shelves heating & Program segment control Can stored 16 programs, each program can be set up 36segments, correct program data in computing, memorize the drying curve	FD1012	Anti-back oil device
FD1007	Additional trays (6pcs)	FD1013	Eutectic point test device
FD1008	Removable lid for drying drum	FD1014	Vial capper
FD1009100	100ml flask	FD1015	Ampoules sealing machine
