Usage:
Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.

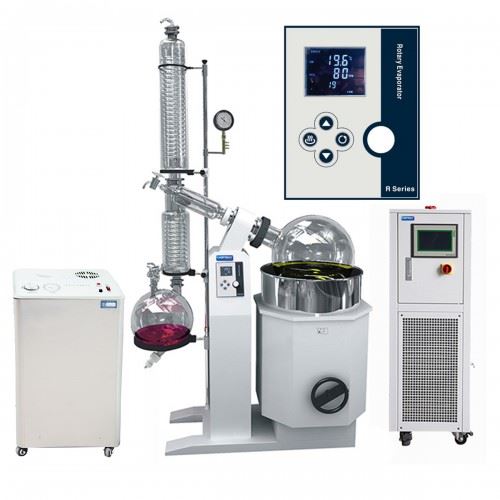

Product Profile

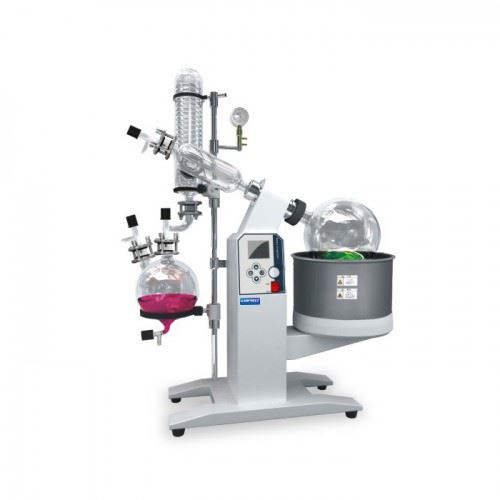

Rotary evaporator uses stepless speed regulation to make the glass rotating bottle rotate at constant speed. Material forms a large area of uniform film on the wall of the bottle. Then the rotating bottle is heated uniformly by an intelligent constant temperature water bath pot. It evaporates at high speed in vacuum. Solvent vapor is cooled by a high-efficiency glass condenser and recycled into the collecting bottle.
Functions and characteristics
The main bracket is made of stainless steel and aluminium alloy with reasonable structure and exquisite materials.
The glass parts are all made of high borosilicate glass (GG-17), which is high temperature resistant and corrosion resistant.
The sealing system adopts imported fluororubber and Teflon(PTFE) two-way combination seal, which has long corrosion resistance and high vacuum.
Vacuum pressure gauge shows real-time vacuum and oil performance is vibration-proof.
Vertical three-layer serpentine coil condenser ensures high recovery.
Continuous feeding is convenient for customers. Valve feeding valve is sleeved with tetrafluoroethylene pipe.
The collecting bottle is equipped with a feeding device to facilitate the collection and feeding of evaporative extracts.
Check valve control, continuous feeding, machine in working state, vacuum switching.
All valves adopt the latest integrated handwheel valves with good sealing and easy operation.
Microcomputer power switch control.
LCD full screen display, temperature, speed dual digital display, bathtub intelligent constant temperature control, PT100Type 1 sensor fast and accurate temperature transfer.
Brushless DC deceleration motor, stable rotation, no spark, deceleration and force increase.
Bath pot electric lifting, lifting part using deceleration booster motor, the lifting process is more stable.
High quality 304 stainless steel is used for pot gall. It is corrosion resistant and durable. The outer layer of pot gall is coated with silica gel. It is safer to use at high temperature.
Over-temperature safety protection function, when the actual temperature exceeds the set temperature of 5 degrees Celsius, the machine heating will automatically power off.
Anti-drying function, when the water level in the heating pot is lower than the heating pipe, the machine will automatically power off.
When the power supply is switched on again, the machine will automatically stop heating if the power is suddenly cut off during the operation of the machine.
