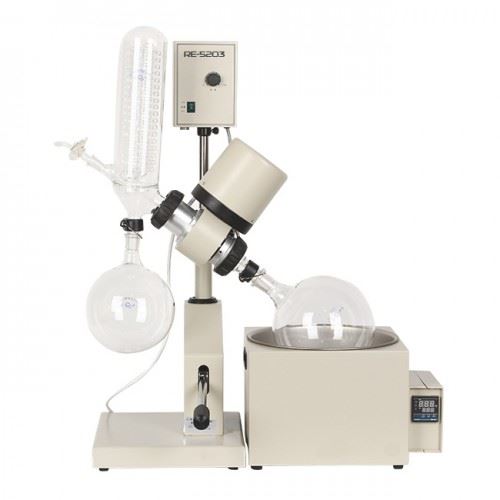

3L Rotary Evaporator

Model: RE-5203

Detailed introduction:

Operation pressure Decompression Structural style Vertical
Appearance Spiral tube Moving condition Internal circulation

Application:

Rotary evaporator using a rotary evaporator flask (flask), increasing the evaporation area, is placed in a water bath under reduced pressure, a device rotating while heating, make the solution in the bottle diffuse and evaporate. It is a basic equipment in the chemical industry, pharmaceutical industry, universities and research laboratories and other units for the manufacture and analysis of experiments which concentrated, dried and recycling.

Features:

With hydraulically balanced lifting device, press the handle down to rise the host machine, turn and lock, on the contrary lift the handle to drop the host machine, turn and lock.
The metal parts are made of corrosion-resistant high-quality stainless steel, long life

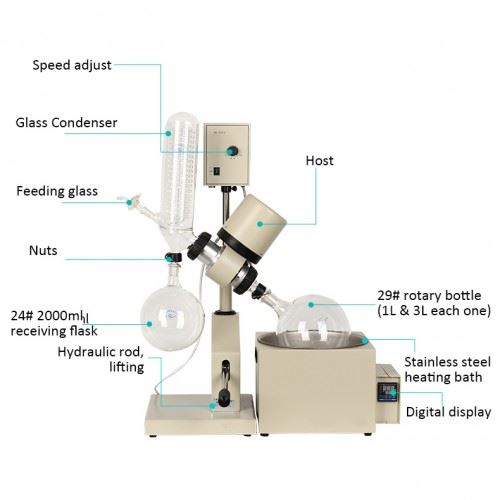

Technical parameters:

Host machine  Electronic variable speed 0-120 r / min, with controller
Lift  leveraged hydraulic balance lift, maximum stroke 130 mm
Cooler  large aperture evaporation tube, double reflux integrated standard port condensing. Valve type feeding tube, tetrafluoroethylene tube sockets, accelerate the evaporation rate.
Heating pot  Stainless steel water bath pot, with temperature controller
Temperature  embedded sensors, digital display automatic control room temperature -99 degrees
Power  1000 VA
Voltage  -220V/50HZ

Glass Accessories:

One condenser pipe
one collection bottle (2L)
evaporating flask (1L, 3L) each one
one glass interface
one feeding tube
