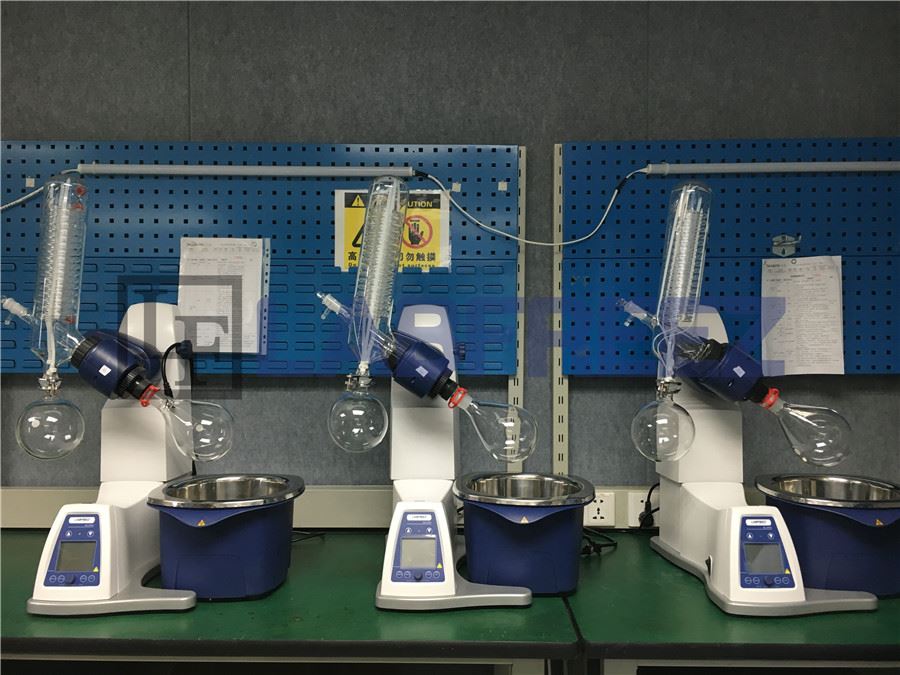

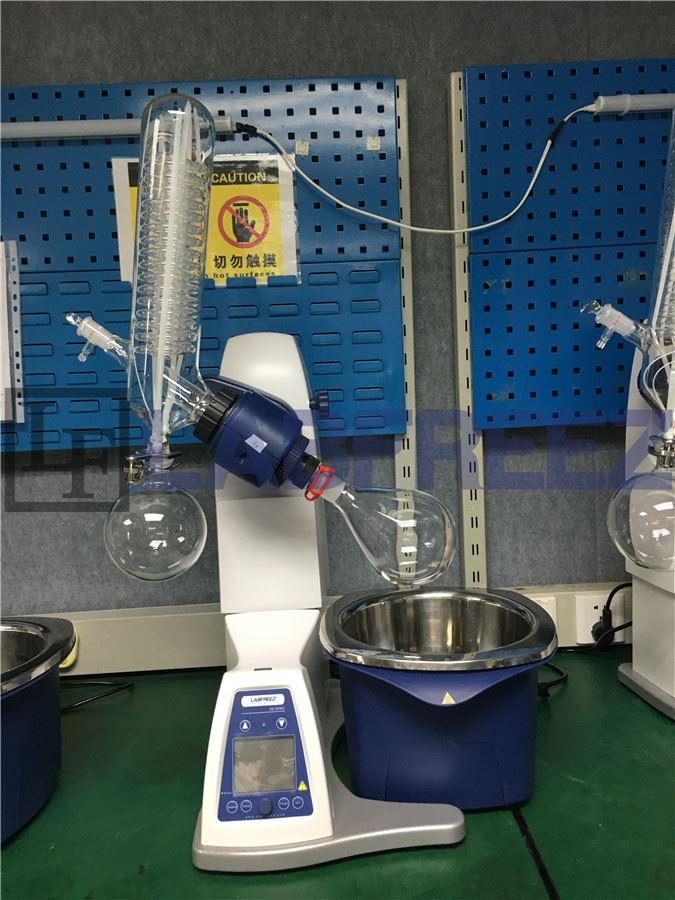

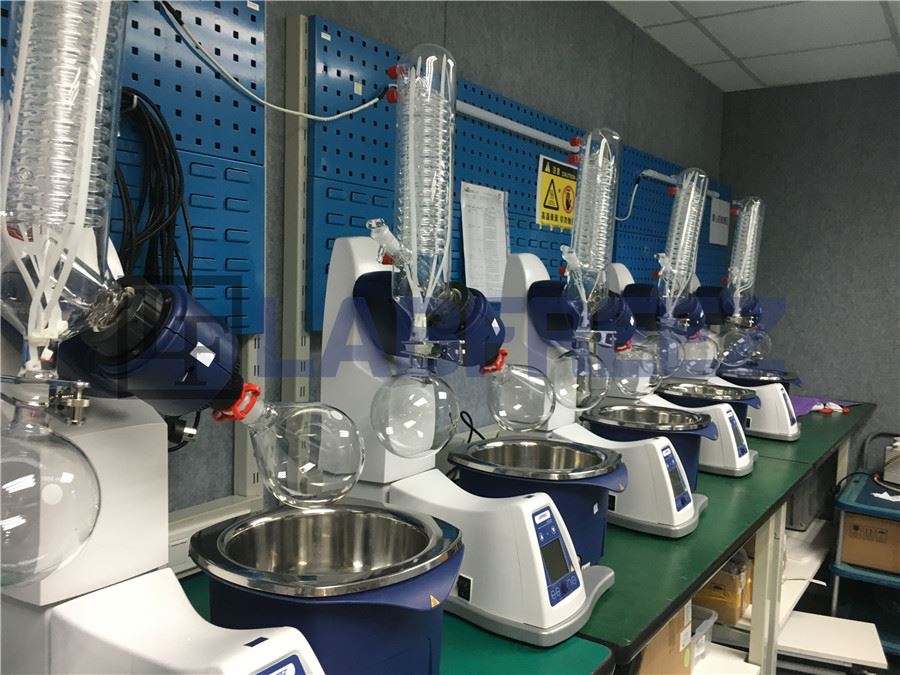

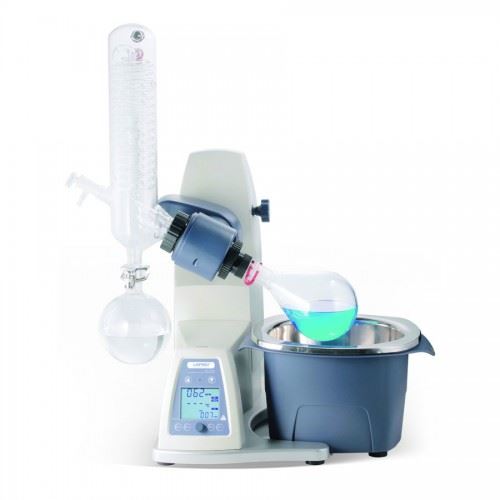

1L Rotary Evaporator, 20~280rpm, 180 Degree C, oil bath, Electric Rotovap

Model: RE-5PRO

Features

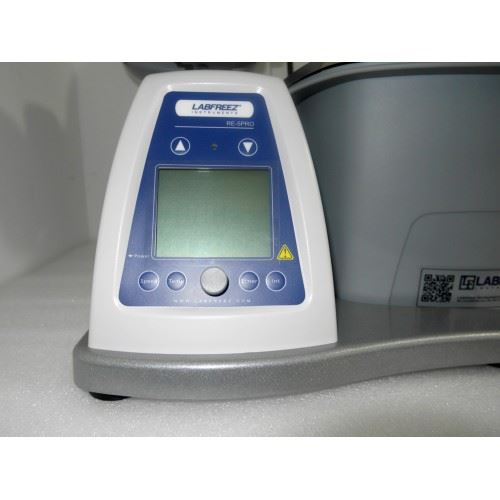

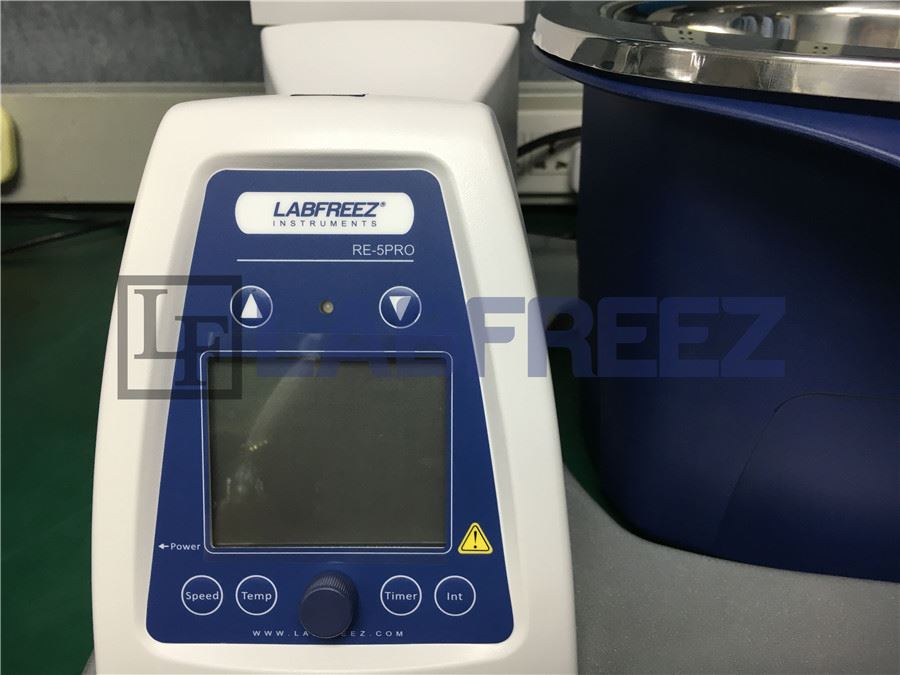

Easy to read large digital LCD screen displays heating temperature, rotation speed and timing
Speed range from 20 to 280 rpm

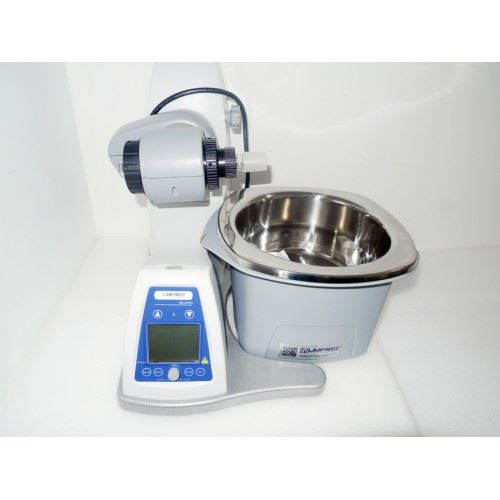

Large 5L water-oil heating bath with heating temperature range of RT to 180°C
Heating bath with precise temperature control and adjustable safety circuit
Designed a detachable operating panel allows remote control
Patented condenser(cooling surface 1,500 cm²) with excellent cooling effect

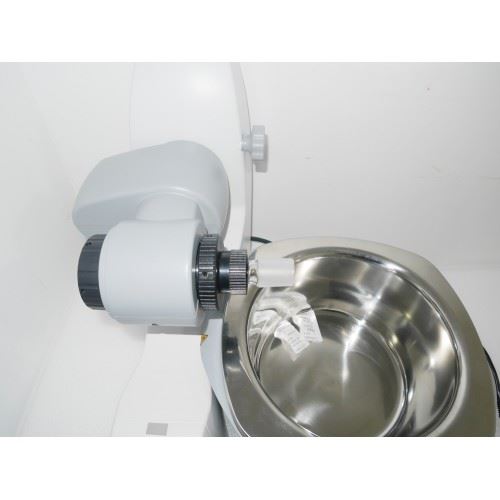

Motorized lift with quick-action, automatic release evaporating flask to top position in case of power failure
Adjustable final position recognition to protect operator and sample against breakage
Evaporating flask with an ejector, convenient to remove
Available with timer function to precise control processing

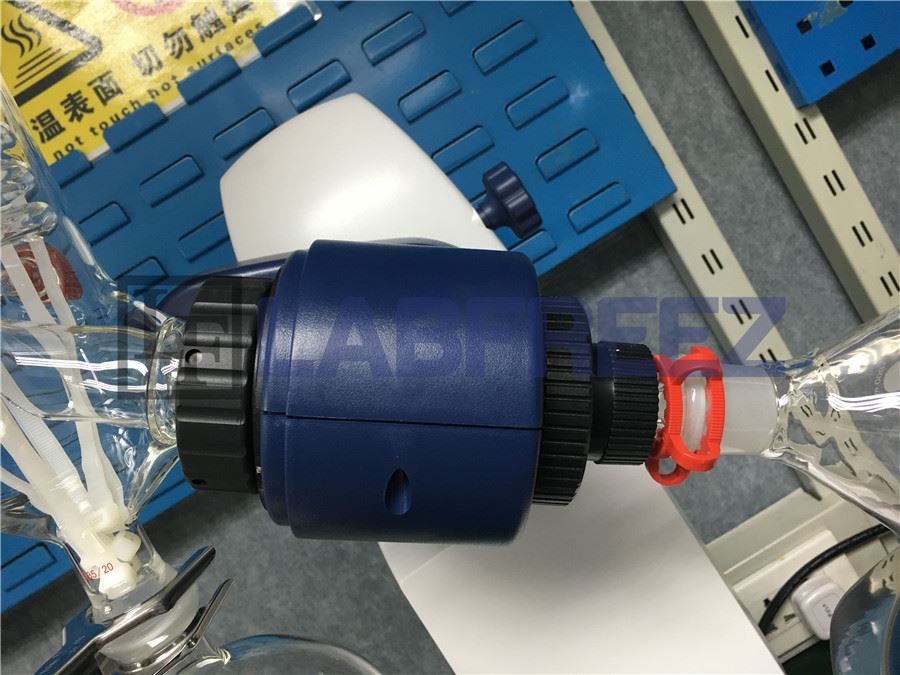

Chemical-resistant double PTFE system and patented pressure spring provide excellent sealing
PC can control and document all parameters via USB

Specifications:

Voltage [VAC] 100-120/200-240
Frequency [Hz] 50/60
Power [W] 1400
Motor Principle DC brushless motor
Speed Range [rpm] 20-280
Speed Display LCD
Reversible Direction of Rotation Yes
Heating Temperature Range [℃] RT-180
Heat Control Accuracy [℃] ±1
Heat Output [W] 1300
Temperature Display LCD
Lift Motor
Stroke [mm] 150
Timer Yes
Timer Display LCD
Time Setting Range [min] 1-999
Overall Dimensions [ D×W×H mm] 465×457×583
Weight [kg] 15
Permissible Ambient Temperature [℃] 5-40
Permissible Relative Humidity 80%
Protection Class acc. To DIN EN60529 IP20
USB Yes

Accessories:

Glassware

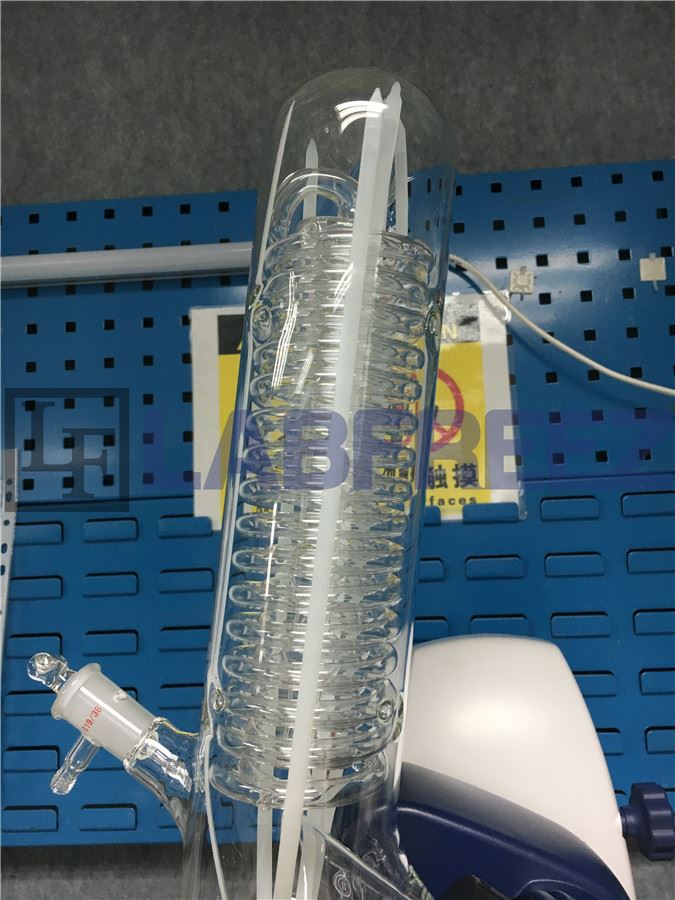

Compact vertical condenser for all standard distillations
Condenser type: vertical
Cooling surface: 1500 cm2
Cat. No: 18900165

Evaporating flask
NS 29/32

Cat. No. Volume
18300116 50ml
18300117 100ml
18300118 250ml
18300119 500ml
18300120 1000ml
18300121 2000ml
18300122 3000ml

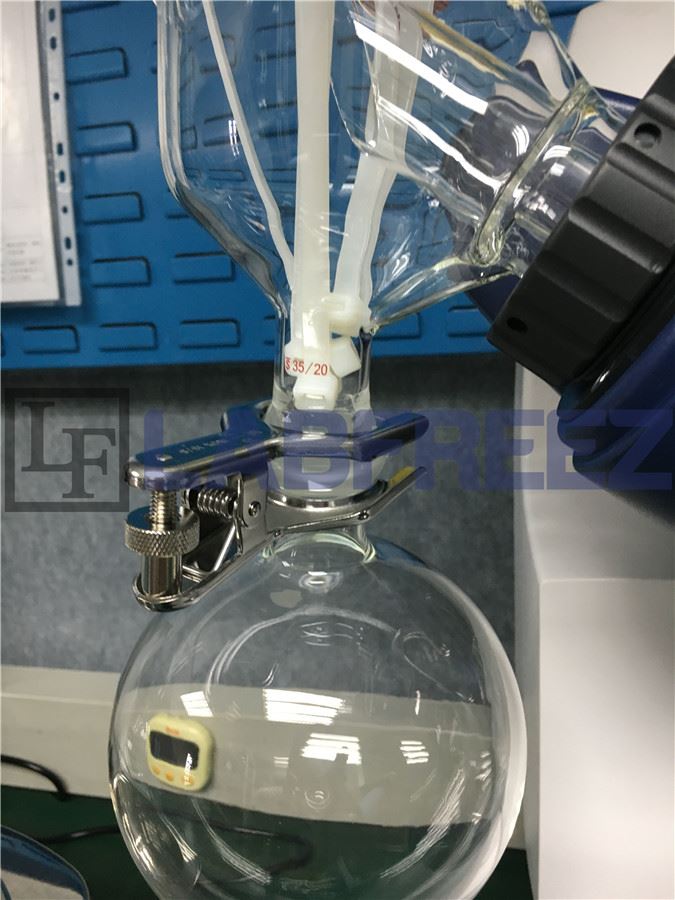

Receiving flask
KS 35/20

Cat. No. Volume
18300107 100ml
18300108 250ml
18300109 500ml
18300110 1000ml
18300111 2000ml
18300112 3000ml

Spiders with 5 flasks
NS 29/32

Cat. No. Volume
18300102 50ml
18300103 100ml

Connector
NS 29/32

Cat. No. Size
18300094 NS 29/24
18300095 NS 29/19
18300096 NS 29/14
Foam brake, 250ml
NS 29/32
Cat. No: 18300093		 Vapor tube
NS 29/32
Cat. No: 18300097
Seal
Cat. No: 18300098

Standard configuration of RE-5PRO

Cat. No Model Item Name Power & Plug
6030110111 RE-5Pro Rotary Evaporator with set of glassware vertical free include 18900165 condenser (1000ml) (package seperately), heating bath USA plug, 100-120V, 50/60Hz
Cn plug, 220-240V, 50/60Hz
Euro plug, 220-240V, 50/60Hz
UK plug, 220-240V, 50/60Hz
6030110121 RE-5Pro Rotary Evaporator with set of glassware diagonal include 18900173 condenser  (1000ml) (package seperately) , heating bath USA plug, 100-120V, 50/60Hz
Cn plug, 220-240V, 50/60Hz
Euro plug, 220-240V, 50/60Hz
UK plug, 220-240V, 50/60Hz
6030110112 RE-5BPro Rotary Evaporator with set of glassware diagonal (1000ml)(package seperately) , heating bath USA plug, 100-120V, 50/60Hz
Cn plug, 220-240V, 50/60Hz
Euro plug, 220-240V, 50/60Hz
UK plug, 220-240V, 50/60Hz
6030110110 RE-5Pro Rotary Evaporator main unit with heating bath (not include glassware) USA plug, 100-120V，50/60Hz
Cn plug, 220-240V, 50/60Hz
Euro plug, 220-240V, 50/60Hz
UK plug, 220-240V, 50/60Hz

RE-5PRO Rotary Evaporator is a complete system include glassware and heating bath ready for work

Spare parts of RE-5PRO

Cat. No. Descriptions Volume
18900165 Glassware vertical，including condenser, evaporating flask (NS 29/32) and receiving flask (KS 35/20) 1000ml
18900173 Glassware vertical，including condenser, evaporating flask (NS 24/40) and receiving flask (KS 35/20) 1000ml
18900163 Glassware diagonal，including condenser, evaporating flask (NS 29/32) and receiving flask (KS 35/20) 1000ml
18900171 Glassware diagonal，including condenser, evaporating flask (NS 24/40) and receiving flask (KS 35/20) 1000ml

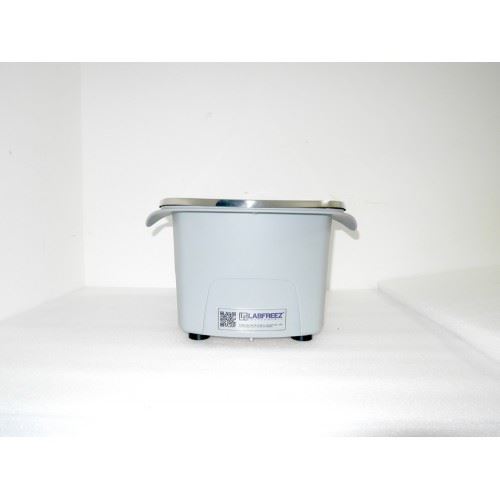

18900201 Heating Bath of Rotary Evaporator, 220V 5L
18900202 Heating Bath of Rotary Evaporator, 110V 5L

Flasks

Cat. No. Descriptions Volume Size
18300116 Evaporating flask 50ml NS 29/32
18300117 100ml NS 29/32
18300118 250ml NS 29/32
18300119 500ml NS 29/32
18300120 1000ml NS 29/32
18300121 2000ml NS 29/32
18300655 50ml NS24/40
18300201 100ml NS 24/40
18300202 250ml NS 24/40
18300203 500ml NS 24/40
18300204 1000ml NS 24/40
18300205 2000ml NS 24/40
18300107 Receiving flask 100ml KS 35/20
18300108 250ml KS 35/20
18300109 500ml KS 35/20
18300110 1000ml KS 35/20
18300111 2000ml KS 35/20
18300094 Connector / NS 29/32, NS24/29
18300095 / NS 29/32, NS19/26
18300096 / NS 29/32, NS14/23
18300199 / NS24/40, NS19/22
18300200 / NS 24/40, NS14/20
18900193 / NS 24/40, NS 29/42
18300093 Foam brake 250ml NS 29/32
18300207 250ml NS 24/40
18100998 Vapor tube / NS 29/32
18300206 / NS 24/40
18900194 Distillation spider for simultaneous distillation from 5 evaporating flasks(Without flasks) 50mL NS 29/32
18900177 50mL NS24/40

Optional items

Cat. No. P/N Descriptions Power supply
18202027   Rubber ring with airtight lip-seal from a PTFE compound with a built-in stainless steel spring
18900362   Full fluorine ether rubber ring with airtight lip-seal from a PTFE compound with a built-in stainless steel spring
18900190   Evaporation flask clip(red) CS002440
18900188   Evaporation flask clip(green) CS002942
18900186   Vacuum regulator /moisture trap (including the vacuum meter and pressure regulating valve)

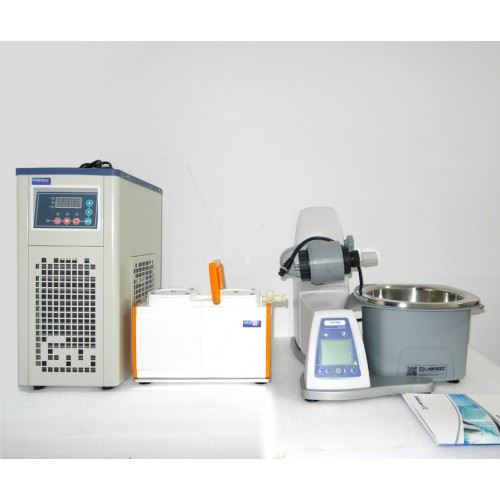

18900254 DP-0.5II Anti-corrosion Diaphragm vacuum pump 220V/50Hz
18900260 LCC400 Closed Circulation Chiller (-15°C) 220V/50Hz
