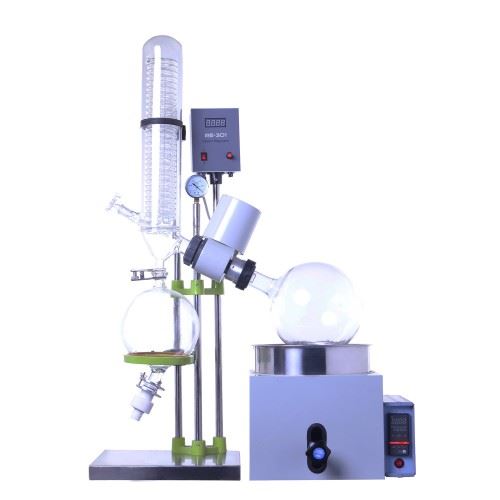

0.5L~3L Rotary evaporator with water bath manual lifting, digital display, Teflon double seal

Model: RE-301

Rotary evaporator product characteristics:

Condenser suction nozzle is lower, which is safer after connecting with vacuum tube.
Modular design with strong expansibility
Easy lifting operation, smooth upward and downward movement, and easy locking.
Special motor, worm gear and worm drive smoothly
Speed display, easy to operate and intuitive
Temperature is controlled by PID, and temperature is controlled accurately.
Bath bath and host are separated for flexible configuration.

Specifications:

Basic parameters	Model	RE-301
	Glass Material	GG-17
	Bracket Material	Stainless steel
	Material of pot shell	Spraying anticorrosion 290296240mm
	Material of Pan gallbladder	Stainless steel 255*170mm
	plate size	350*330mm
	Rotating bottle volume	3L ￠50Flange mouth
	Collect bottle volume	2L 35#Ball mill
	vacuum degree	0.098Mpa
	Rotating power	40W
	Rotating speed	0-120rpm
	heating power	2KW
	Temperature control range of bathtub	0-400℃
	Rotating bottle volume	±1℃
	Voltage/frequency(V/Hz)	220V/50Hz
	Lifting trip	120mm
	Shape size(mm)	660330970mm
	Packing dimensions(mm)	1000460450 0.21square
	Packing weight (KG)	38
Function Configuration	Speed regulation mode	e-cvt
	Speed display mode	digital display
	Temperature display mode	K Type 1 sensordigital display
	temperature control	Intelligent Temperature Control
	Sealing method	Tetrafluoro Component Sealing
	condenser	100*510mm
	Lifting mode	Manual lifting of bathtub
	Continuous Feeds	19#Label feeding valve
	Vacuum display mode	Vacuum meter
