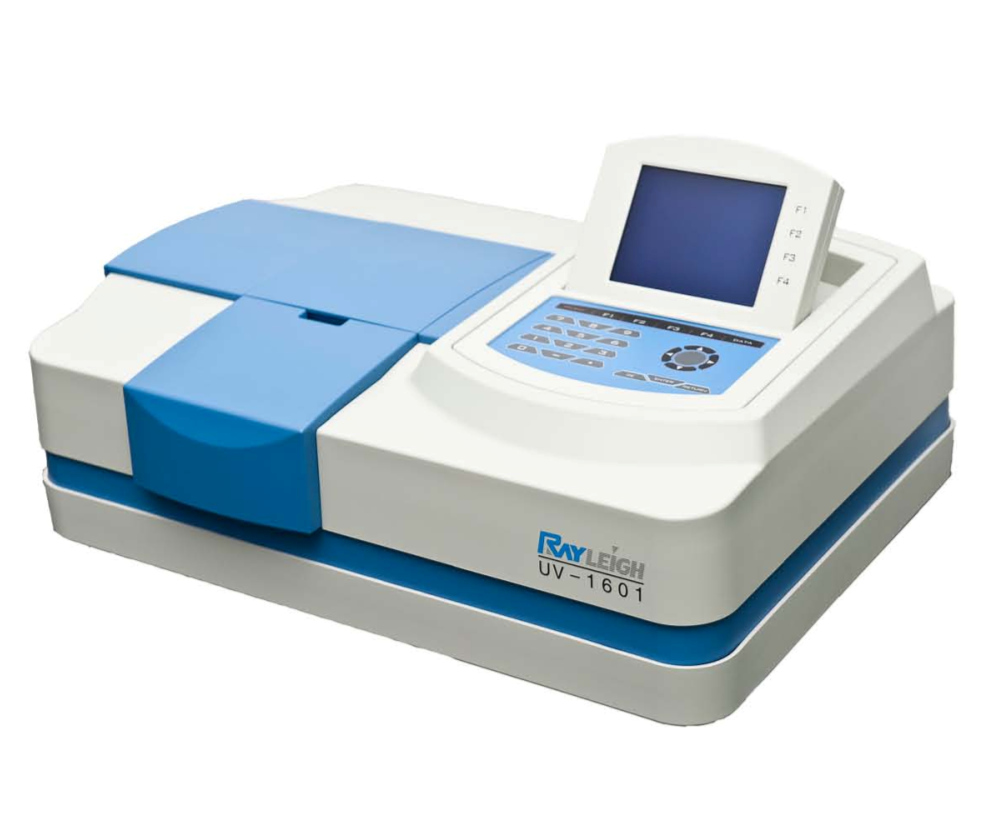

UV-1601 Split-beam UV/VIS Spectrophotometer

FEATURES:

–   Wide wavelength range, satisfying requirements of various fields.

–  The split-beam ratio monitoring system provides accurate measurements and enhances baseline stability.

–   Four options for spectral bandwidth selection, 5nm,4nm, 2nm and 1nm, made according to customer’s need and satisfying the requirements of pharmacopoeia.

–   Fully automated design, realizing easy measurement.

–   Optimized optics and large scale integrated circuits design, light source and receiver from world famous manufacturer all add up tohigh performance and reliability.

–   Rich measurement methods: spectrum mode, photometric mode, kinetic mode, multi-wavelength mode, quantitative mode etc., meet differentmeasurement requirements.

–   Automatic 10mm 8-cell holder, changeable to automatic 5mm-50mm 4-posion cell holder for morechoices.

–   Data output can be obtained via a printer port.

–   Parameters and data can be saved in case of powerfailure for user’s convenience.

–  PCcontrolled measurement can be achieved via RS-232 interface (USB port) for moreaccurate and flexible requirements.

SPECIFICATIONS:

–   Wavelength Range:                      190-1100nm

–   Spectral Bandwidth:                     2nm (5nm,4nm, 1nm optional)

–   Wavelength Accuracy:                  ±0.3nm

–   Wavelength Reproducibility:        0.15nm

–   Photometric System:                    Split-beamratio monitoring; Auto scan; Dual detectors

–   Photometric Accuracy:                 ±0.3%T (0-100%T)

                                                      ±0.002A(0～0.5A)

                                                      ±0.004A(0.5A～1A)

–   Photometric Reproducibility:       0.2%T

–   Working Mode:                          T, A , C, E

–   Photometric Range:                     -0.3-3A

–   Stray Light:                                 ≤0.05%T(NaI, 220nm)

–   Baseline Flatness:                       ±0.002A

–   Stability:                                    0.001A/30min(at 500nm, after warming up)

–   Noise:                                        ±0.001A (at 500nm, after warming up)

–   Display:                                     6 inches high light blue LCD

–   Detector:                                   Silicon photodiode

–   Power:                                      AC: 220V/50Hz, 110V/60Hz, 180W

–   Dimensions:                             630×470×210mm

–   Weight:                                     26kg
